In the digital age, the traditional waiting time for emails seems to be being rewritten by “immediate notifications.” Zak Kemble’s “Mail Notifier – WiFi Edition” project, with its simple yet efficient hardware design, brings a smart experience to the physical mail delivery and reception experience, connecting the small details of everyday life to the modern IoT network.
1. Design Motivation and Background
After nearly a year and a half of using a previous generation cellular-based email notification device, Zak faced the challenge of a carrier network change: the original EE network was switched to Vodafone, resulting in limited signal for the A9G GPRS module and difficulty finding cost-effective cellular service. This forced the project to adopt a new approach. Fortunately, since his mailbox is close to his home and within WiFi coverage, Zak decided to adopt a simpler WiFi solution. This not only reduced hardware complexity but also significantly lowered power consumption and maintenance costs.
2. Hardware Architecture and System Operation

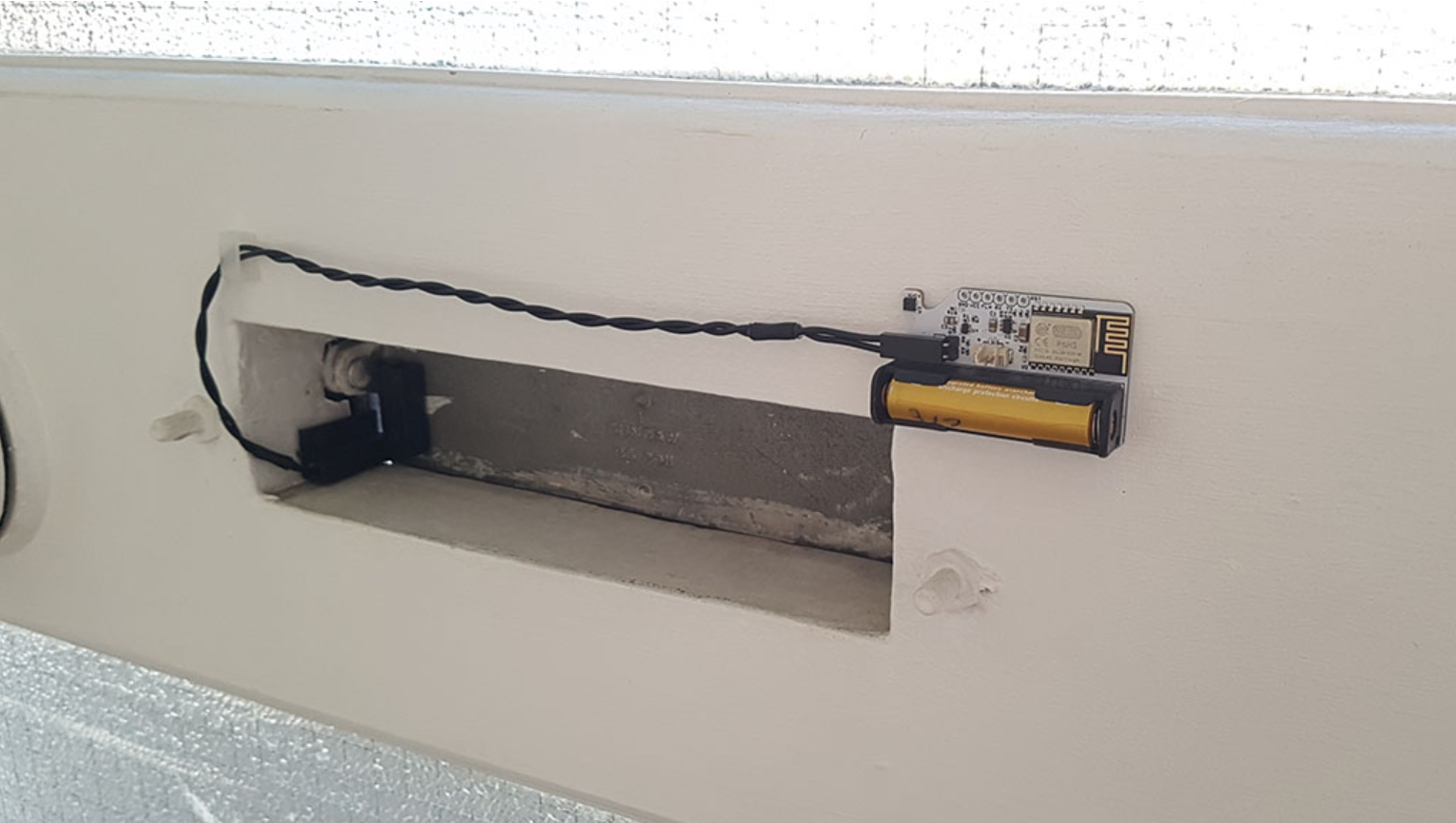

This revision primarily replaced the wireless communication module: the previous A9G module was replaced with an ESP-M2 module with integrated flash memory. This module is based on the ESP8285 chip, offering stable performance and low-power operation. Email detection is still triggered by the mailbox’s reed switch. A logic gate chip (74LVC1G98) controls the 3.3V power regulator module’s on/off state and system startup, ensuring power is supplied only when necessary, significantly improving battery life. An SHT31-DIS temperature and humidity sensor placed inside the mailbox provides environmental monitoring data, which is synchronized to the server.
System workflow:
- Opening the mailbox lid activates the reed switch, triggering the logic gate to turn on the regulated power supply;
- The ESP module powers up, establishes a WiFi connection, and sends a JSON-formatted POST request containing status and environmental data to the server;
- A server-side PHP script receives the data, formats it, and pushes a notification to a Telegram group;
- After the notification is sent, the ESP shuts down, achieving ultra-low-power sleep and awaiting the next trigger.
This process, with its standard response and precise timing, ensures that ESP startup, networking, data transmission, and exit are completed within seconds, optimizing energy efficiency.
3. Performance and Battery Life
The project has been running for over seven months, and after over 100 email alerts, the battery voltage has only dropped from 4.2V to 3.9V. A single charge is estimated to last over a year. Thanks to optimal power management and hardware selection, the device achieves excellent low power consumption, making it suitable for long-term deployment in everyday environments without the need for frequent charging or maintenance.
4. Software and Extensibility
The entire system code and circuit design are open source, allowing developers to customize and extend functionality. By rewriting the PHP backend, it can integrate with other notification platforms or implement more IoT connections. The device also supports placing the ESP in firmware upload mode, facilitating remote upgrades and maintenance, demonstrating the design’s flexibility and future-proofing.
5. Technical Highlights and Innovations
- Minimalist Hardware Design: Eliminates GPS and cellular modules in favor of an embedded flash WiFi chip, simplifying hardware maintenance.
- Intelligent Power Management: Utilizes logic gates and capacitor delays to control the on/off power supply, ensuring that the module receives power only when needed, saving energy.
- Environmental Monitoring: Integrated high-precision temperature and humidity sensors enhance the richness and practical value of notification information.
- Open Source Ecosystem: Open firmware and circuit design foster community participation and customization.
Zak Kemble’s Mail Notifier WiFi Edition, with its lightweight design and intelligent network communication, offers a modern upgrade for traditional email notifications. It exemplifies both technological innovation and the practical integration of IoT technology into everyday life, lowering user barriers to entry and reducing maintenance costs. From its hardware architecture to its software logic, this device embodies a simple and efficient design philosophy, setting a valuable example for the smart home industry.
